SharePoint at Storage Ceiling: 5 Levers Before You Buy

· 8 min read

By Juan Pedro Márquez

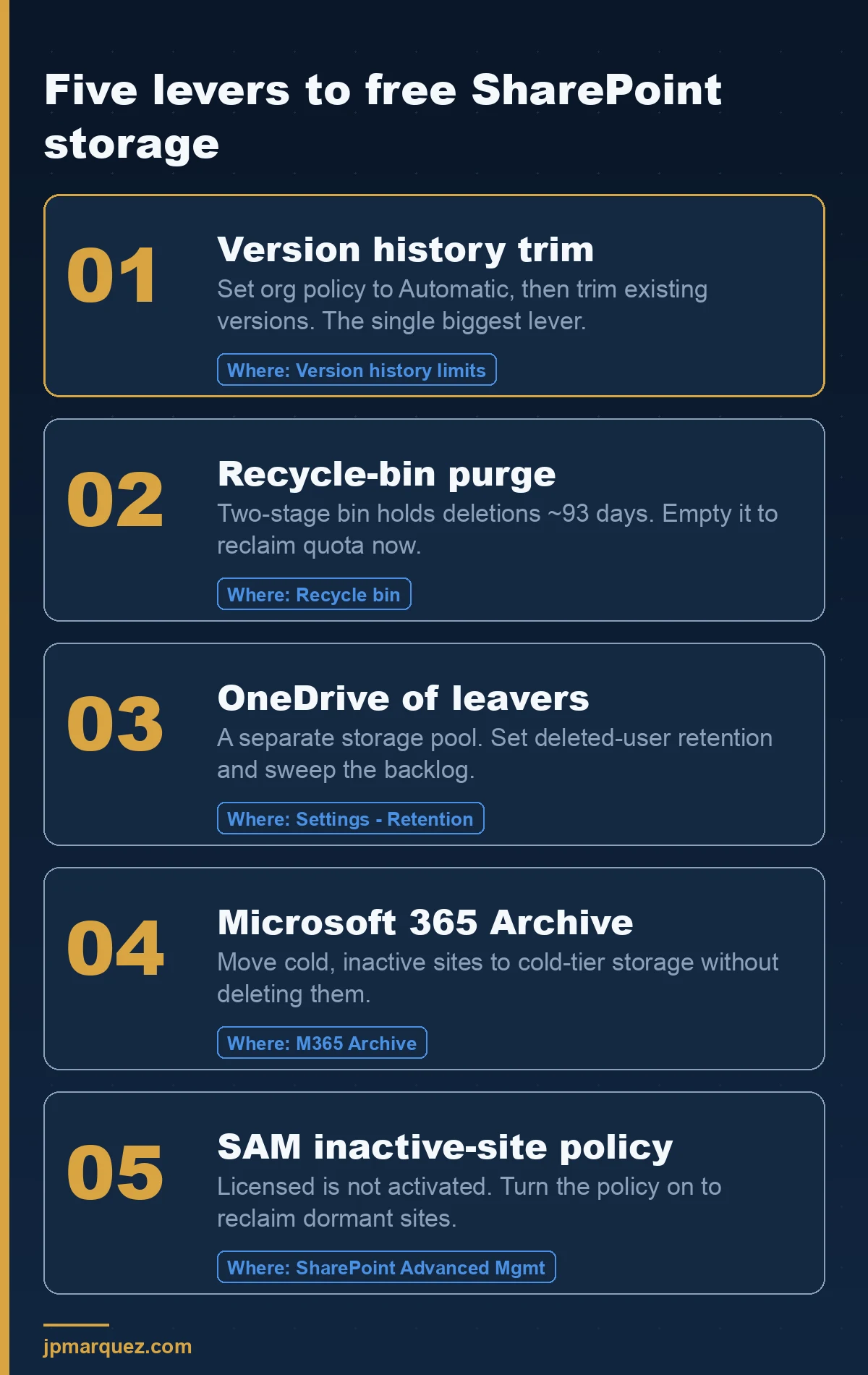

When a SharePoint Online tenant hits its storage ceiling, buying more space feels like the only option. It's the last one. Five levers — version trim, recycle-bin purge, the OneDrive of leavers, Microsoft 365 Archive, and SharePoint Advanced Management — usually recover more room than a purchase order, at no extra cost. Here's the order I pull them in. I worked with a public-sector organisation of roughly 17,000 users whose SharePoint tenant had crossed its storage ceiling — barely a sliver of headroom left on a tenant deep into the terabytes. The instinct in the room was to raise a purchase order. We didn't. Two days later they had a recovery plan that freed tens of terabytes and a steady-state policy so it wouldn't creep back. Not one gigabyte was bought. Storage ceilings sneak up on large tenants for almost always the same reasons, stacked: legacy version policy, file-server habits (ZIPs, videos and image dumps living in document libraries), Teams provisioning sprawl, a backlog of unlicensed OneDrive accounts from people who left, and SharePoint Advanced Management licensed but never switched on. Each one is a lever. Pulled in the right order, they buy back years of headroom. ## Why can't you just clean OneDrive to free SharePoint storage? You can't — and assuming you can is the fastest way to lose a technical audience. On commercial Microsoft 365, SharePoint Online and OneDrive are two separate, independent storage pools. Emptying OneDrive frees nothing in the SharePoint tenant quota. The familiar "1 TB + 10 GB per licensed user" SharePoint formula explicitly excludes OneDrive. Only Microsoft 365 Education tenants pool storage across SharePoint, OneDrive and Exchange. I've watched a sharp customer technical lead disengage the moment a recovery report lumped the two together. Keep them separate: SharePoint quota has its own levers; OneDrive is a cost-and-lifecycle problem. Everything below is about the SharePoint pool — except lever 3, which is deliberately about OneDrive, because that's where the biggest number usually hides. For the ground rules on both, start with [SharePoint storage planning](https://learn.microsoft.com/en-us/sharepoint/sharepoint-storage-planning) and [site storage limits](https://learn.microsoft.com/en-us/sharepoint/manage-site-collection-storage-limits). ## Which levers actually free SharePoint storage? There are five that matter, and they're worth pulling in order of effort-to-payoff. The first one alone often solves the problem. ![Five levers to free SharePoint storage](https://hxpwtqrwvrlzxdcrcwbv.supabase.co/storage/v1/object/public/blog-images/posts/sharepoint-storage-ceiling-5-levers-levers.webp) ### 1. Trim version history — the single biggest lever **Where:** SharePoint admin center → Settings → Version history limits. Every edit keeps historical versions. On a tenant provisioned before March 2026, the default is legacy manual versioning — often 500, sometimes 100 copies per file — and it quietly consumes a large share of your total. Two moves: - **Set the organisation version limit to Automatic.** Automatic keeps the recent versions people actually restore and trims the long tail; Microsoft's own guidance reports up to ~94% version-storage reduction versus flat count limits. See the [overview of version history limits](https://learn.microsoft.com/en-us/sharepoint/document-library-version-history-limits). - **Trim the existing versions.** The org setting only applies going forward; the bloat already on disk needs a [trim job on existing versions](https://learn.microsoft.com/en-us/sharepoint/trim-versions). **Gotcha:** content under a retention policy or legal hold is exempt. The trim job stamps an expiration date instead of deleting, and retention always wins. That's exactly why you need the realistic range further down — not the theoretical one. ### 2. Empty the recycle bins **Where:** site recycle bin → second-stage recycle bin. Deleted files sit in a two-stage recycle bin for up to 93 days before they leave the quota. Until they age out — or you empty them — they still count against you. On a tenant that's been deleting aggressively to make room, emptying both stages can return space immediately. It's irreversible, so confirm nothing in the bin is still needed first. ### 3. Reclaim the OneDrive of leavers (separate pool — cost, not quota) **Where:** SharePoint admin center → Settings → Retention (deleted-user OneDrive). When someone leaves and their licence is removed, their OneDrive is retained for a window you configure — anywhere from 30 to 3,650 days. On a five-figure headcount, that backlog quietly grows into tens of terabytes. This does not free SharePoint quota — it's licence waste and lifecycle cost — but it's usually the single biggest number in the whole exercise, and it's the one a CFO reacts to. Set the window deliberately and sweep the backlog: [set the OneDrive retention for deleted users](https://learn.microsoft.com/en-us/sharepoint/set-retention). ### 4. Send cold sites to Microsoft 365 Archive **Where:** SharePoint admin center → Active sites → Archive. Some sites are legally required to exist but nobody opens them. Instead of deleting (you can't) or paying hot-tier prices, move them to [Microsoft 365 Archive](https://learn.microsoft.com/en-us/microsoft-365/archive/archive-overview) — cold-tier storage at a lower cost, reactivatable when needed. Retention and compliance obligations travel with the content. ### 5. Turn on the SharePoint Advanced Management policies you already pay for **Where:** SharePoint admin center → Policies → Site lifecycle management. The most common finding on enterprise tenants: [SharePoint Advanced Management](https://learn.microsoft.com/en-us/sharepoint/advanced-management) (SAM) is licensed tenant-wide and not a single policy is switched on. Licensing is not activation. Turn on the [inactive-site policy](https://learn.microsoft.com/en-us/sharepoint/inactive-site-policy) so dormant sites get detected, owners get notified, and stale sites retire on a cadence instead of accumulating forever. If you're formalising the wider policy set, my [SharePoint governance best practices](/blog/sharepoint-governance-best-practices) guide covers it end to end. ## What can you realistically recover — and what you can't? This is the number that protects your credibility. The theoretical maximum — every site trimmed to the floor — is a fantasy on any regulated tenant. Content under legal hold, audit retention or regulator mandates cannot be trimmed, archived or deleted, whatever lever you reach for. So quote a range, not a maximum. On a large tenant, an aggressive version trim might look like 60–110 TB in theory but land at 20–50 TB in reality once the compliance carve-out is applied. On the engagement I mentioned, roughly a third of the SharePoint surface turned out to be compliance-protected. Name that boundary up front. A customer who's promised a realistic range and gets it trusts you; a customer who's quoted a theoretical maximum and watches it deflate does not. Microsoft's own documentation is explicit that [retention policies and holds override version limits](https://learn.microsoft.com/en-us/purview/retention-policies-sharepoint).

Free — SharePoint Storage Ceiling Rescue Kit

The one-page field kit behind this article: the 5-lever checklist, a realistic recovery-range worksheet, and the compliance carve-out rule. Print it and take it to your next storage review.

Get the Rescue Kit →
## The 30-day sequence 1. **Week 1 — Measure.** Pull storage by site (Active sites, sorted by storage). Identify your top 100 consumers and flag which of them carry legal hold or retention. 2. **Week 1 — Set the org version policy to Automatic.** Forward-looking, zero risk, immediate effect on new versions. 3. **Week 2 — Trim existing versions** on the top consumers (respecting holds), then empty recycle bins where it's safe. 4. **Week 2–3 — Set deleted-user OneDrive retention** and sweep the leaver backlog. 5. **Week 3 — Archive cold sites** that carry retention duties to Microsoft 365 Archive. 6. **Week 4 — Activate the SAM inactive-site policy** so the tenant stays clean without another rescue next year. Run it in that order and the buy-more-storage conversation usually disappears on its own. And once storage is under control, the next SharePoint project is usually making it Copilot-ready — [start with the Term Store and metadata](/blog/sharepoint-online-ai-ready-term-store-copilot-agents). ## Frequently asked questions ### Does cleaning OneDrive free SharePoint storage? No. On commercial Microsoft 365, SharePoint Online and OneDrive are separate, independent storage pools, and the SharePoint "1 TB + 10 GB per user" allocation excludes OneDrive. Cleaning OneDrive addresses licence cost and lifecycle, not SharePoint tenant quota. Only Microsoft 365 Education tenants pool the two. ### How much storage can version trimming actually recover? It depends on your version policy and how much content is compliance-protected. On a large tenant the theoretical maximum is often 60–110 TB, but the realistic figure is typically 20–50 TB after the compliance carve-out. Switching the org policy to Automatic can cut version storage by up to ~94% versus flat count limits — but content under retention or hold is exempt. ### What's the difference between licensing and activating SharePoint Advanced Management? Licensing SAM tenant-wide has zero governance effect until you explicitly enable and scope policies — inactive site, ownership, attestation. Many tenants pay for SAM and run none of it. Activation, not the licence, is what reclaims dormant sites. ### Will trimming versions delete files under legal hold? No. Retention policies and eDiscovery holds override version limits. When a trim job meets a version under hold, it stamps an expiration date and keeps the version until the hold is released. Retention always wins over any version-trimming setting.
